SPECIALIZING IN HMI LIGHTING REPAIR SINCE 1989.
MOTION PICTURE - TELEVISION - VIDEO



         ..... When you just want it done right!









.

         HMI Lighting Repair

We go beyond component level repairs; we go from the core of the PCB (Printed Circuit Board), to the surface of the PCB. We test for any carbon debris, metal oxides, foreign material or any other conductive debris on the surface of the PCB, which can cause intermittent shorting of circuits or even arcing. We also test for copper foil & plating breakdown (copper foil & solder cracks) at plating holes and circuits (see picture below). So, not only do we repair to the component level, we repair any breakdown problems on the PCB that would cause a repeated failure on your lighting equipment. A PCB is an insulator which is made up of FR-4 (Flame Resistant 4) epoxy-glass laminate material with a composite of a resin epoxy reinforced with a woven fiberglass mat, with plated through holes and circuits. We have over 30 years experience in troubleshooting to the component level and 11 years experience in PCB manufacturing at a lab chemical and metallurgical process engineering level.  Galaxy Repair Service is the only Repair Center you will need for all your Lighting Repairs & Support!

The first picture on the left shows a solder crack, a common intermittent problem which causes a light to flutter,
flicker or shut-off.  (Magnified 50x)

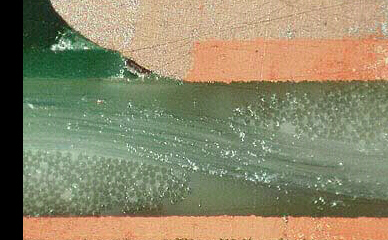

The second picture on the right, the center of the two copper plated layers shows the core of the PCB made up
of epoxy-glass with resin epoxy with a woven fiberglass mat. (Magnified 200x)

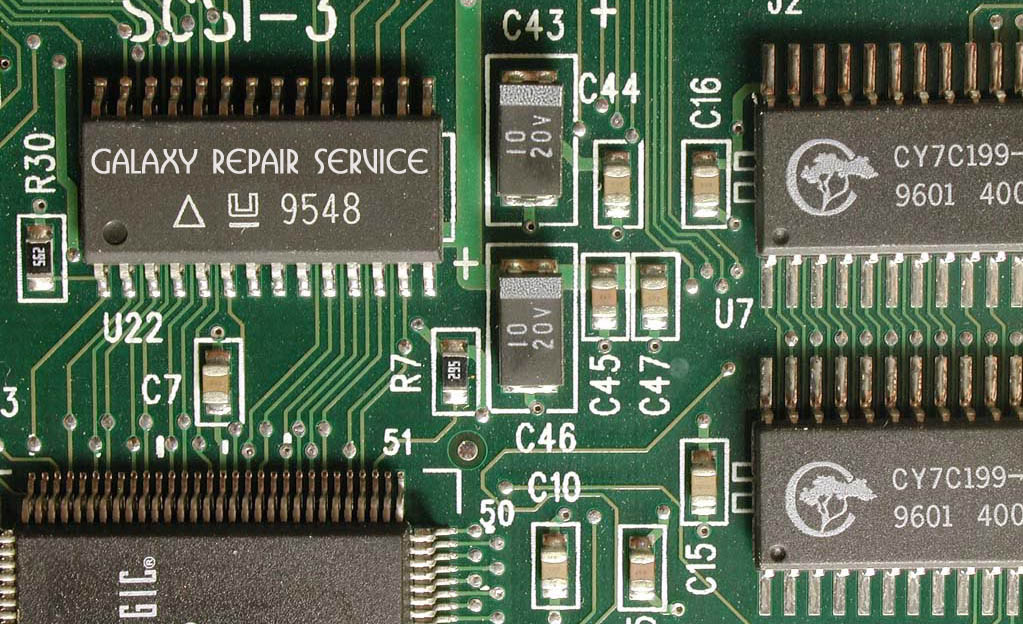

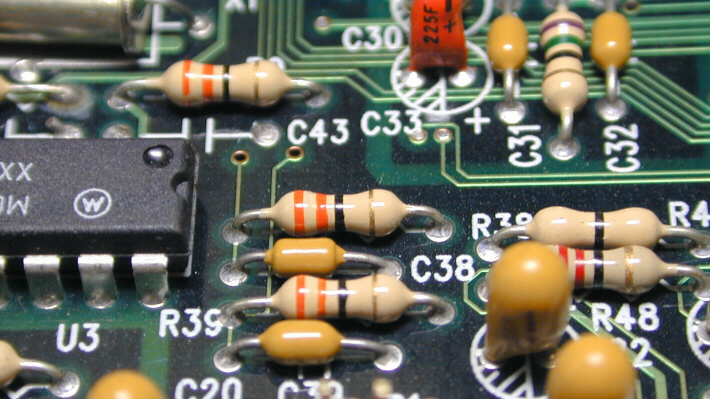

Picture above shows a PCB with electronic components.

   .   .

** SERVICE - REPAIRS - PARTS - SALES - SUPPORT **

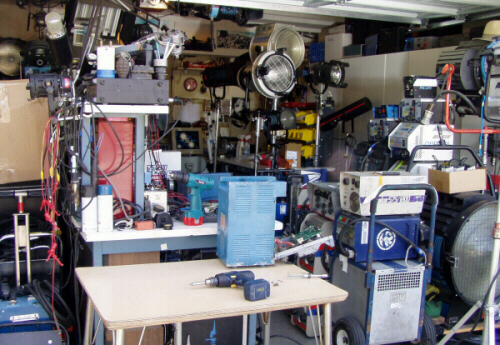

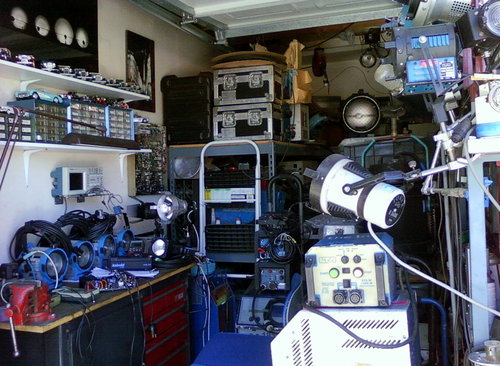

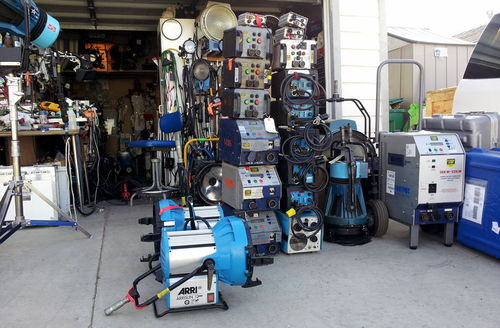

OUR REPAIR CENTER

,

 .

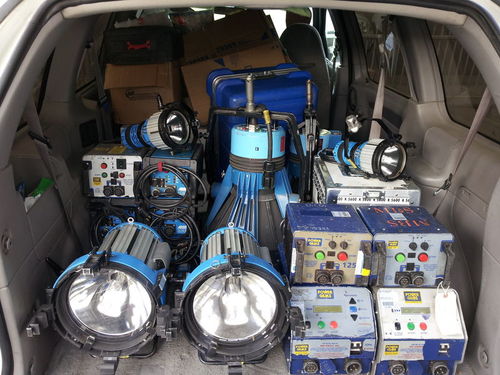

We also provide free local pick-up and drop-off in North Hollywood for your convenience.



We ship daily direct to you by UPS Ground, 3rd, 2nd, Next Day or FedEx Express Service.

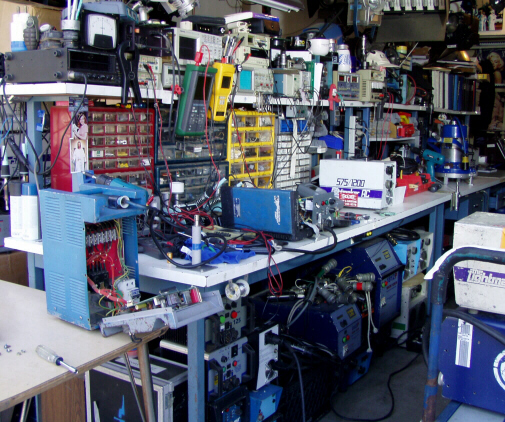

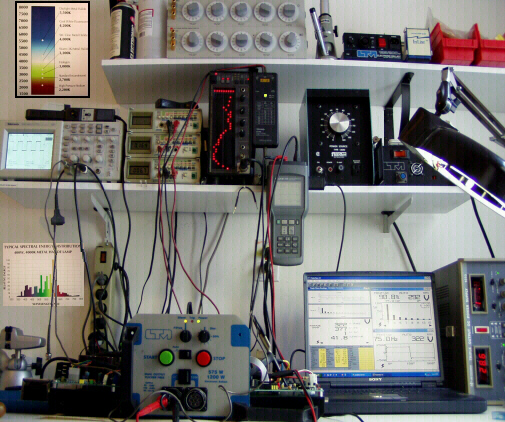

TROUBLESHOOTING/ DIAGNOSTIC TEST LAB

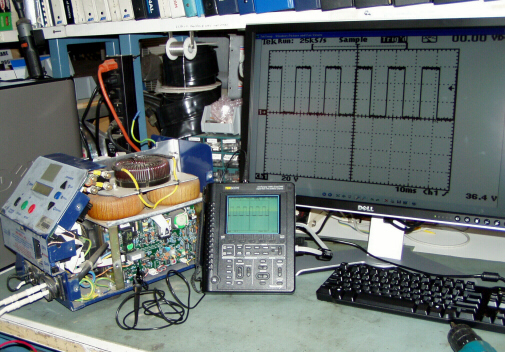

INTERFACING TEST DATA WITH COMPUTER

PROVIDING EXPERIENCED & PROFESSIONAL TECHNICAL SERVICE FOR ALL YOUR LIGHTING NEEDS!

'

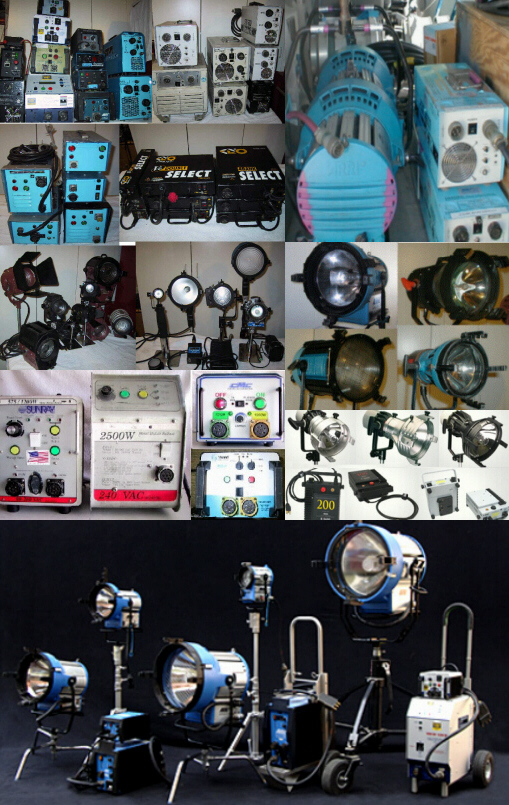

We service, repair and support every major brand of ballasts and light fixtures,
so whatever you have, call us! Get the Best for Less!

"a magnetic ballast is like a tank, but an electronic ballast is like a BMW"  G. Navarro

.
